Diode Dynamics Stage Series White/Amber LED Scene Light Kit
Overview
Add broad, usable illumination around your vehicle, campsite, cargo area, or work zone with Diode Dynamics Stage Series White/Amber LED Scene Lights. These dual-color Stage Series lights switch instantly between high-output cool white and lower-glare amber without requiring a lens change. White output provides clear visibility for camp setup, loading equipment, nighttime repairs, and general work. Amber output provides softer lighting when reduced glare is preferred. Each light uses an optically engineered clear diffused lens to create a wide, even 60-degree beam. The compact lights feature sealed M8 connectors, powder-coated aluminum housings, passive pin-fin cooling, and thick automotive-grade polycarbonate lenses.
Choose from a universal 2-light kit, a 2-light bundle with mounts for Orion Roof Racks, or a complete 4-light system. The 2-light Orion bundle and the 4-light complete kit include the required mounting components for installation on Orion Roof Racks. No additional channel nuts, brackets, or rack-mounting fasteners are required for these configurations. All three configurations include a main battery and switch harness, one 5-meter M8 extension, and free shipping within the lower 48 states. If you need additional M8 extensions (1m, 3m, 5m), they can be purchased separately via email.
Key Features
- Selectable cool white and amber light output
- Instant color switching without changing lenses
- Wide, even output from optically engineered lenses
- Compact waterproof M8 connections
- Powder-coated aluminum housings
- UV-coated automotive-grade polycarbonate lenses
- Passive pin-fin heatsinks
- IP68 waterproof construction
- Operating range from -40 degrees F to 185 degrees F
- Modular mounting options for racks, vehicles, trailers, and campers
- Direct mounting option available for Orion Roof Racks
- Made in the USA with globally sourced materials
Choose Your Kit Configuration
Kit Comparison
| Included Component | 2-Light Kit | 2-Light Kit with Rack Mounts | 4-Light Complete Kit |
|---|---|---|---|
| SKU | DD8760+ DD4142 | DD8760+2DD8909+ DD4142 | DD8911 |
| White/Amber Stage Series Lights | 2 | 2 | 4 |
| Hardware | Included |
Included |
Included |
| Roof-Rack Mounts | Not included | 2 angled mounts | 4 angled mounts |
| Main Battery and Switch Harness | Included | Included | Included |
| 1-Meter M8 Extension | 1 | 1 | 4 |
| 2-Meter M8 Extension | Not included | Not included | 1 |
| 3-Meter M8 Extension | 1 | 1 | 1 |
| 5-Meter M8 Extensions | 1 | 1 | 1 |
| 2-Way M8 Splitters | 2 | 2 | 3 |
| Zip Ties | 6 | 6 | 8 |
| Installation Guide | Included | Included | Included |
| Free Shipping to Lower 48 States | Included | Included | Included |
2-Light Kit

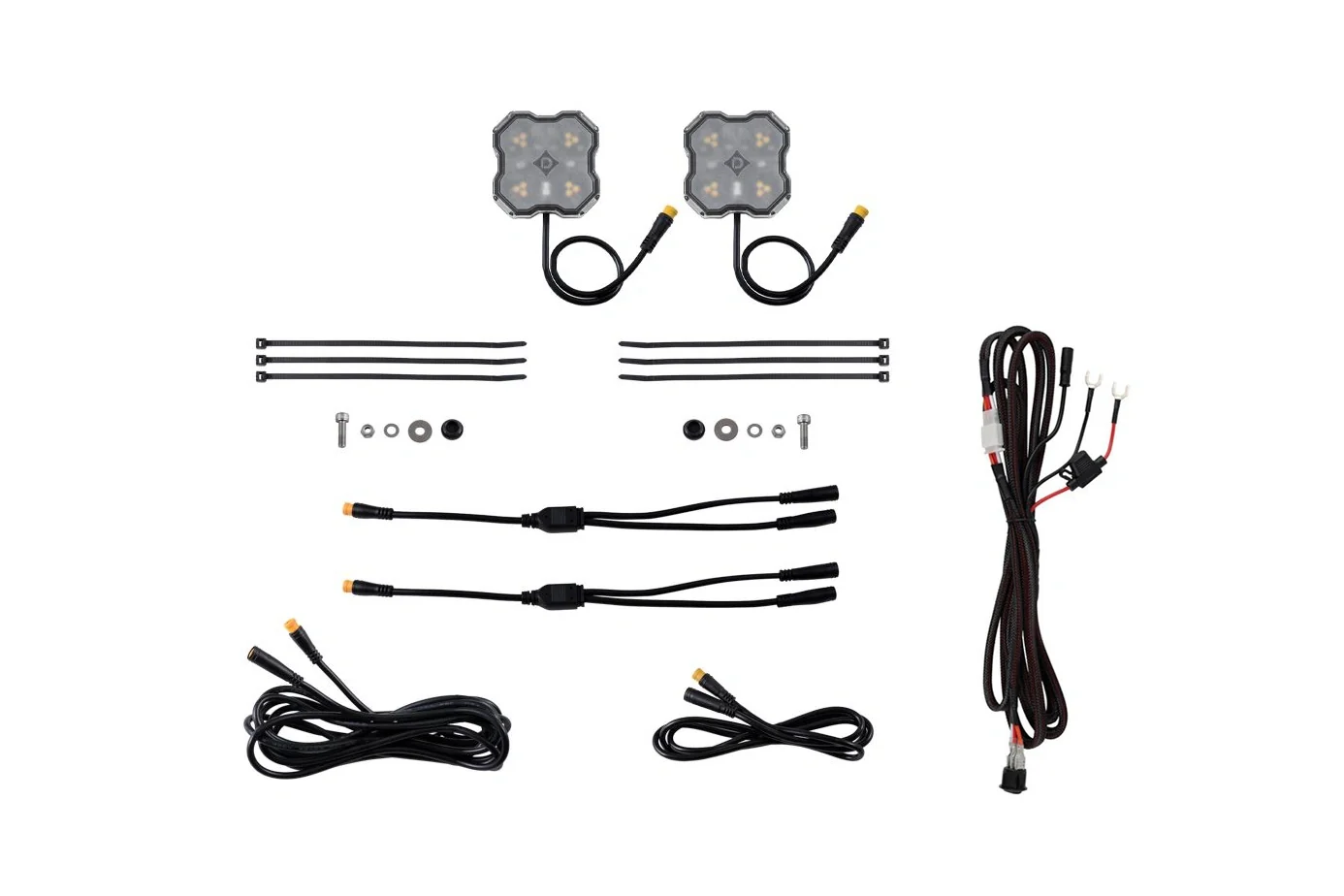

The standard 2-Light Kit includes two Stage Series White/Amber lights, one 5-meter M8 extension, one 1-meter M8 extension, one 3-meter M8 extension, two 2-way splitters, one main battery and switch harness, two standard hardware kits, zip ties, and an installation guide. It does not include roof-rack mounts.
2-Light Kit with Rack Mounts

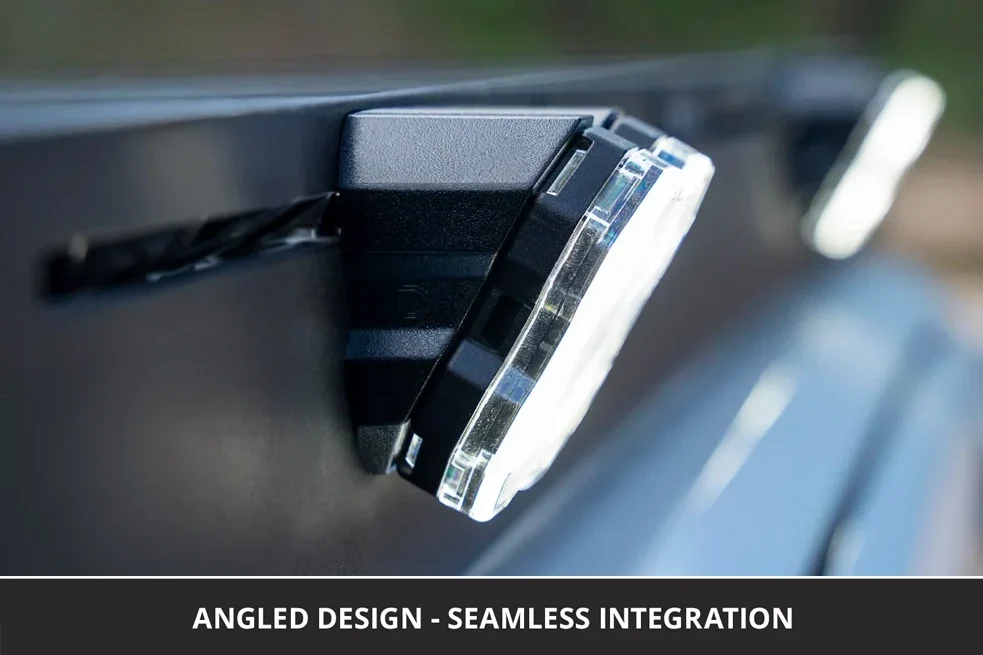

The mounts and required mounting hardware allow the lights to attach directly to Orion Roof Racks without additional channel nuts, brackets, or fasteners.
4-Light Complete Kit
The 4-Light Complete Kit includes four Stage Series White/Amber lights, four angled mounts, four 1-meter M8 extensions, one 2-meter M8 extension, one 3-meter M8 extension, one 5-meter M8 extension, three 2-way M8 splitters, zip ties, mounting hardware, an installation guide, and a main battery and toggle-switch harness. A common installation places one light near each corner of the roof rack. The main harness terminates in a single M8 power output. The included 5-meter extension connects to this output and carries power to the roof. The three included 2-way M8 splitters and shorter extensions then distribute power to the four lights for common van roof wiring layouts.
Mounting and Compatibility
The 2-Light Kit with Orion Rack Mounts and the 4-Light Complete Kit include the hardware required for mounting on Orion Roof Racks. The lights can also be used on vehicles, trailers, campers, roof racks, bed racks, and cargo systems when compatible mounting hardware and wiring are selected. Fitment on racks other than Orion Roof Racks should be verified before ordering.
These lights are not compatible with the Kuat DEK rack.
Wiring Requirements
The wiring harness connects directly to the vehicle battery, supports dual-color Stage Series Rock Lights, uses a three-position switch, and provides one M8 output. See wiring diagrams for van-specific 2- and 4-light installation in the product images.
The 4-light configuration includes a fused battery harness and toggle switch with one M8 power output. Connect the included 5-meter extension to this output and route it to the roof through a roof entry gland. Use the three included 2-way splitters to branch the single feed to the four lights. The four 1-meter extensions, one 2-meter extension, and one 3-meter extension provide flexible routing between the splitters and light locations. Compatible M8 extension cables are sold separately for installations that require additional cable length. Contact us to order extensions.
Technical Specs
Per-Light Output Specifications
| Spec | White Output | Amber Output |
|---|---|---|
| Raw Lumens | 1,440 | 1,080 |
| Intensity | 150 cd | 120 cd |
| Color Temperature | 5700K | 1900K |
| Power Draw | 7.7 watts | 11.5 watts |
| Current at 13.2V | 0.6 amps | 0.9 amps |
Construction and Electrical Specifications
| Spec | Details |
|---|---|
| Output Colors | Cool White and Amber |
| Beam Pattern | Round |
| Beam Angle | 60 degrees |
| Operating Voltage | 9-16V |
| Wire Size | 28 AWG |
| Polarity | Polarity specific |
| Connector | M8 input |
| LED Emitter | Lumileds Z ES |
| Driver | Linear regulated |
| Lens Material | UV-coated polycarbonate |
| Housing Material | Powder-coated aluminum |
| Cooling | Passive pin-fin heatsink |
| Intrusion Rating | IP68 waterproof |
| Operating Temperature | -40 degrees F to 185 degrees F |
| Individual Light Weight | 0.1 lb |
| Manufacturing | Made in the USA with globally sourced materials |
Warranty Coverage
Diode Dynamics identifies qualifying Stage Series Rock Lights and off-road mounting brackets as eligible for its Limited Lifetime Warranty for applicable purchases on or after April 15, 2025. Wiring, wiring harnesses, lens covers, and other accessories may have different warranty coverage. All warranty eligibility, exclusions, proof-of-purchase requirements, and claim terms are governed by the current Diode Dynamics warranty policy.
Resources
- Installation Guide, Stage Series LED Scene Light Kit DD8911
- Installation and Wiring Guide, Stage Series Rock Lights DD8760
- 4-Light Kit Wiring Diagram for Van Roof Racks
- 2-Light Kit Wiring Diagram for Van Roof Racks
Frequently Asked Questions (click to expand)
The standard 2-Light Kit includes two lights and wiring components but does not include roof-rack mounts. The Orion bundle adds two DD8909 wedge roof-rack mounts. The 4-Light Complete Kit includes four lights, four mounts, long extension cables, three 2-way splitters, and the main battery and switch harness.
Yes, they include a 3-Pin Rock Light M8 Wiring Harness.
Choose the 2-Light Kit with Orion Rack Mounts when adding two lights to an existing compatible system or for just two lights on one side. Choose the 4-Light Complete Kit when installing a new standalone four-light system.
No. The standard DD8760 configuration includes standard light hardware but does not include the DD8909 wedge roof-rack mounts.
No, as long as you choose the correct option. The Orion 2-light bundle with mounts and the 4-light complete kit include the required rack-mounting hardware. Some installations will require extra extension depending on where your DC panel, roof entry gland, and desired light placements are.
Yes. The dual-color lights provide cool white and amber output without requiring a lens change.
Each 2-light configuration includes one 1-meter extension, one 3-meter extension, and one 5-meter extension. The 4-light kit includes four 1-meter extensions, one 2-meter extension, one 3-meter extension, and one 5-meter extension. Extra extensions may be purchased separately.
Yes. Compatible M8 extension cables are sold separately for installations that require additional cable length. Email us.
Diode Dynamics rates the Stage Series lights IP68 waterproof. Wiring and connectors should still be routed and secured according to the installation instructions.
Qualifying Stage Series Rock Lights and off-road mounting brackets are eligible for the Diode Dynamics Limited Lifetime Warranty under the manufacturer's current terms. Wiring, harnesses, lens covers, and other accessories may have different coverage.
